Hot end and Cold end coating equipment

Cold end coating equipment

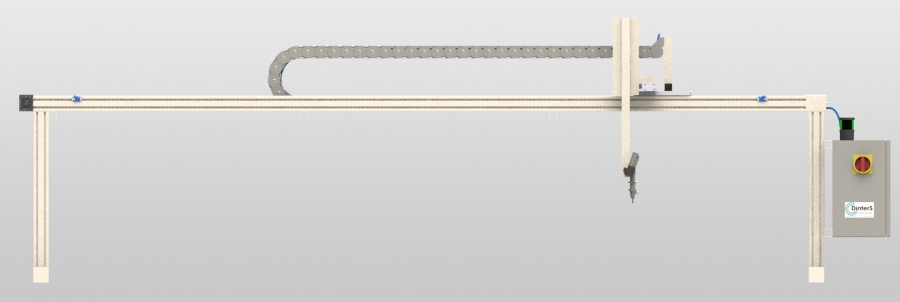

COLD END COATING BRIDGE

The DinterS Cold End Spray Bridge is used to apply cold end coating to assure that glass containers will move properly through high speed filling lines and to assure that the surface of these containers are adequately protected from becoming damaged during sliding contact.

The DinterS Cold End Spray Bridge in combination with a DinterS Dosing System guarantee a homogeneous and well distributed treatment on all sizes and shapes of glass containers.

The Cold End Bridges is available up to 6000mm length in an upper belt version as well as an under belt version.
Servo motors and Siemens control guarantee an uninterrupted coating process at the cold end area.

Inquire for more information about a cold end coating bridge here

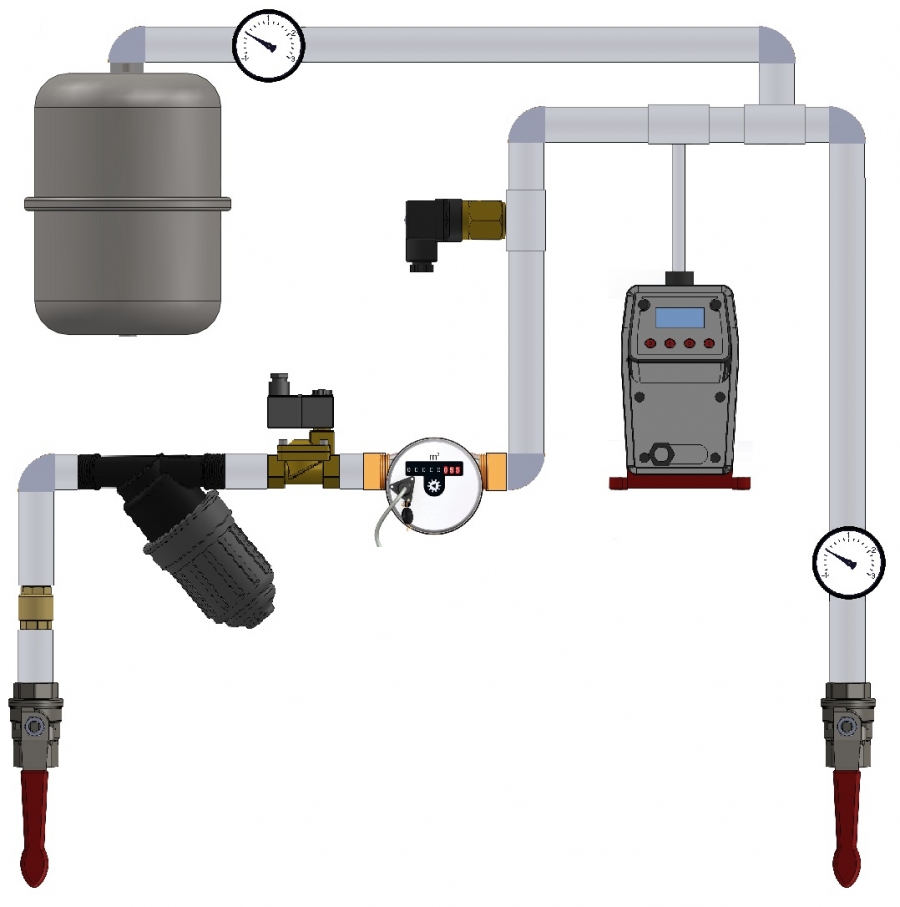

MIXING SYSTEM

The Mixing System supplies the cold end coating in ratio between 0.5-2.5%.
Water is mixed with the prefered cold end emulsion.
Other mixing ratio can be discussed.



Inquire for more information about a cold end mixing unit here





CONTROL PANEL


The control panel is fixed to the bridge and holds a Siemens HMI and PLC.
State of the art Siemens components guarantee uninterrupted functioning.







Inquire for more information about a cold end coating bridge here
